EBM machine setup tips that boost output fast

Esta es una máquina de moldeo por soplado por extrusión con cabina de seguridad cerrada y panel de control del operador integrado para la producción automatizada de botellas.

Why setup is your fastest lever for more bottles, today

Most plants chase output by adding shifts or buying another line. Setup is faster.

Dial an extrusion blow molding machine in properly and you unlock capacity you already own. No capex. No waiting for delivery. Just disciplined, repeatable setup.

The 80/20 of output: fixing setup beats buying capacity

Poor setup taxes every cycle: longer heat-soak, unstable parisons, sticky molds, slow de-mold. Good setup compounds: fewer jams, lighter parts at spec, faster changeovers, higher uptime.

I focus on the few knobs that move 80% of throughput: utilities, melt prep, parison control, mold cooling, and changeover discipline.

What “fastEBMz” looks like: cycle time, scrap rate, uptime targets

• Cycle time: benchmark each SKU; set a “no excuses” target (e.g., 15.0 ± 0.2 s).
• Scrap rate: < 2% on steady runs; < 5% within 30 minutes post-changeover.
• Uptime: ≥ 92% line availability over a shift.

Write these on the cell board. Review them at every shift handover.

Quick wins checklist: 15-minute setup tweaks that pay off now

• Level machine bed, lock feet, re-check clamp parallelism.
• Verify air/water pressures at the mold—not just at the header.
• Confirm resin dryness log; purge until melt is clear and bubble-free.
• Load the correct recipe (temperatures, timings, parison curve) from memory and sanity-check.
• Wipe and spot-spray mold release only where specified.
• Feel the pinch-off line with a strip test; adjust pressure to seal cleanly.

Level the frame, lock the feet: vibration kills consistency

A machine that walks will drift. Use a machinist level across platens, then torque the leveling feet. Add anti-vibration pads if floors are thin. Re-check after first heat-soak.

Verify utilities at spec: power, air, water, and resin dryness

• Power: stable voltage; no more than ±3% sag during clamp motion.
• Air: clean, dry, oil-free; point-of-use filter and dryer near the machine.
• Water: measure ΔT across mold; aim for 2–4 °C per pass with adequate flow.
• Dryness: HDPE typically doesn’t need drying, PP rarely does—contaminated regrind does. Audit, don’t assume.

Warm-up profiles that prevent gels, angel hair, and die lines

Bring zones up in a stagger: rear → mid → front → head. Soak at temp for 30–45 minutes. Keep the head slightly hotter than the front barrel to avoid die-face chill lines.

Machine baseline: dial in extrusion like a pro

Start at the last known good recipe. Change one variable at a time in small steps, waiting at least 10–15 parisons to evaluate.

Screw speed vs. melt temperature: find the sweet spot fast

Balance shear heat (screw speed) and barrel heat (zones).

• Too cold → gels, un-melt, high head pressure, poor welds.
• Too hot → saggy parison, ovality, long cycle.

Walk screw speed in 5–10 rpm steps while counter-steering barrel temps by 2–3 °C to hold melt pressure steady.

Back pressure and screen pack choice for clean, steady parisons

Raise back pressure for mixing and color dispersion; lower it to protect gels with regrind. Use a staged screen pack (e.g., 40/60/80/100 mesh) and change proactively—throttled screens cause pressure spikes and thickness swings.

Purge routine that saves hours (and resin) on every changeover

• Drop temps 10–15 °C, purge with neutral resin until clear.
• Utilizar una wash blend (low-viscosity PE) for color swaps.
• Log purge shots by screw diameter; stop purging on time, not by guess.

Die head & parison control: the heart of wall-thickness stability

Keep the head hot-spot evenly profiled. Center the die. Then let parison control do its job—fine adjustments, not heroics, if the mechanics are right.

Centering and concentricity: quick tests for straight drops

• Paper feeler at four quadrants between die and mandrel.
• Mirror test to watch the free-hang; it should drop dead-center without a drift.

Shim once. Re-test twice.

Parison programming (parison control curves) for corners and handles

Thicken where the mold steals: corners, handles, neck support rings. Use a simple curve first (3–5 points), then add detail. Smooth, not spiky. Aim for ±1% wall variation on cut samples.

Drop-time timing: sync parison cut, mold close, and blow start

Your golden trio: (1) parison reaches target length, (2) knife cuts clean, (3) mold closes and pre-blow starts within tens of milliseconds. Desync means neck ovality, flash, or short shots.

Mold setup: where seconds and grams are won or lost

Polish where the part drags. Vent where the air traps. Lube where the eject sticks. Measure, don’t guess.

Clamp alignment and parting line sealing in five checks

• Parallelism with feeler gauges.
• Tie-bar stretch symmetry.
• Parting-line light-leak test.
• Pinch-off imprint uniformity.
• Flash thickness ≤ target.

Venting and pinch-off geometry for fewer leaks and flashes

Open vents where haze spots appear. Sharpen pinch-off where weeps persist. Keep land lengths consistent so seals don’t over-crush.

Mold surface prep: release, polish, and hot-spot mapping

Avoid blanket release sprays. Spot-apply. Scotch-Brite polish only where scuff marks show. Use a temp crayon or IR gun to mark hot spots and rebalance water there.

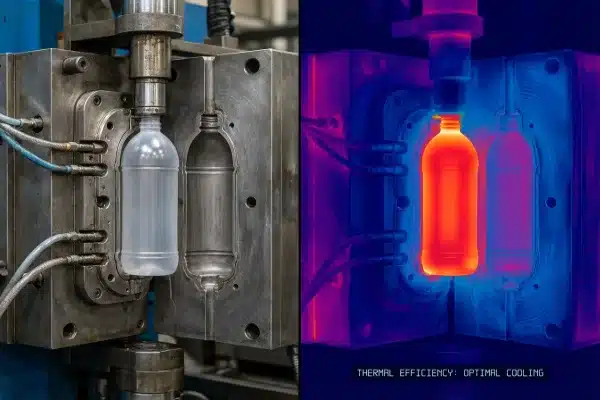

Cooling strategy: more parts per hour without warping

You don’t need the coldest water—you need balanced cooling. Focus on uniformity across thick areas; controlled cool beats over-cool and warp.

Water circuit design: series vs. parallel and ΔT targets

• Parallel circuits give even temps; best for uniform parts.
• Series can starve the last cavity; avoid unless flow is oversized.
• Target 2–4 °C ΔT across the mold; > 5 °C means under-flow.

Chiller setpoints and flow rates that actually reduce cycle time

Set the chiller 2–3 °C below the mold outlet temp target, not at the minimum the unit can do. Verify liters/min at each circuit—low flow fakes “cold” without removing heat.

Smart air-knife placement to shorten de-mold cooling

Angle air to peel heat off corners and handles. Short, focused bursts beat constant drafts that cool everything and waste energy.

Blow & exhaust air: shape fast, release faster

Tune pre-blow to push material into features. Shorten main blow once shape is achieved. Speed up exhaust to release the vacuum grip.

Pre-blow, main blow, and exhaust timing to cut seconds

• Pre-blow: earlier, lower pressure, shorter.
• Main blow: just long enough to freeze shape.
• Exhaust: as quick as the part allows without collapse.

Trim each by 0.05–0.1 s and re-measure weight and dimension.

Blow pin alignment and leak testing on the fly

Blue-dye leak tests catch micro-weeps fast. If leaks migrate around the neck, check pin concentricity and burrs. Realign—don’t over-pressurize.

Air quality and dryness: invisible culprit behind haze

Moist air blisters inside corners and necks. Add point-of-use dryers. Replace filters on schedule. Log dew point weekly.

Conveying, trimming, and deflashing: keep parts moving

A fast press with a slow exit is still slow. Match robot pick time to mold open time. Keep conveyors clear. Set sensors so a backed-up bin pauses the cycle before parts pile up.

Robot and conveyor handshakes that prevent backups

Use hard interlocks. If the robot misses a pick, the mold shouldn’t close. Program gentle acceleration to avoid scuffs on hot parts.

Hot vs. cold deflash: choosing the lesser evil for your bottle

• Hot: cleaner edges, lower cycle—but risk of smear and string.
• Cold: safer for glossy parts—may add seconds.

Pick by cosmetic spec, not habit.

Scrap routing that avoids double-handling and contamination

Drop flash straight into a sealed grinder feed. Color-code regrind streams. No floor bins. Less handling = cleaner re-use.

Material matters: resin choices and regrind rules for speed

Every resin has a tempo. Respect it and you’ll run faster with fewer grams.

HDPE vs. PP: temperature windows and cycle-time implications

• HDPE: wider window, faster de-mold; watch ESCR for detergents.
• PP: narrower window, higher gloss potential; needs tighter cooling control.

Regrind % without pain: practical caps for consistent parisons

Start at 10–15% and climb in 5% steps only if wall and color stay stable. Cap at the point your parison ovality creeps or head pressure swings.

Additives for surface, ESCR, and color that won’t slow you down

Choose slip/antistat packages proven for moldeo por soplado. Over-loading colorants thickens melt and slows cooling—test concentrate levels against cycle time and weight.

Process control & sensors: see issues before they cost you

Instrumentation turns feel into facts.

Melt pressure and temperature sensors for real-time tuning

Plot head pressure vs. cycle. A rising trend with constant settings means fouling screens or moisture. Stabilize before chasing recipes.

Infrared parison monitoring to catch sag and ovality

IR sensors track skin temperature. Alarm when it drifts beyond a narrow band so you correct before bottles go off-spec.

PLC alarms worth enabling (and the ones to silence)

Enable: melt pressure high/low, water flow low, air dew point high, recipe mismatch. Silence: nuisance door interlocks that trigger during teach—fix the cause, not the symptom.

Changeover playbook: SMED for extrusion blow molding

Treat changeover like a pit stop.

Color swaps under 30 minutes: staged purges and “wash” blends

Pre-stage the wash resin. Lower temps slightly, purge on a timer, then step back to setpoint while loading the new recipe.

Mold change cart, quick-connects, and checklist discipline

Tool carts with labeled hoses, torque wrenches, and spare shims. Quick-connect water/air. A laminated checklist signed by the setter and the operator.

First-article recipe sheets that slash dialing time

Capture the first good part: temps, timings, parison curve, head pressure, weight, photos. Store it under a controlled SKU code.

Quality at speed: don’t outrun your QC

Go faster only if you can still see calidad in real time.

Lightweighting without paneling: ring crush and drop tests

Cut grams in 1–2% steps. After each step run ring-crush and 1-meter drop on warm and room-temp parts. Stop where safety margin narrows.

Neck finish and handle strength checks in under 2 minutes

Go/no-go gauges for necks. Simple loop pull or handle bend tests at the press. Fast, decisive, logged.

Inline vision basics to stop shipping defects

Start with presence/absence: flash, short shot, oval neck, color streaks. Add dimensional checks later. Reject to a closed bin.

Energy & maintenance: output gains that lower kWh/kg

Faster, cleaner cycles use less energy per kilo.

Barrel zones and insulation: free cycle time from wasted heat

Insulate barrel and head. Tune zones to stop hunting. Stable melt means shorter blows and quicker cool.

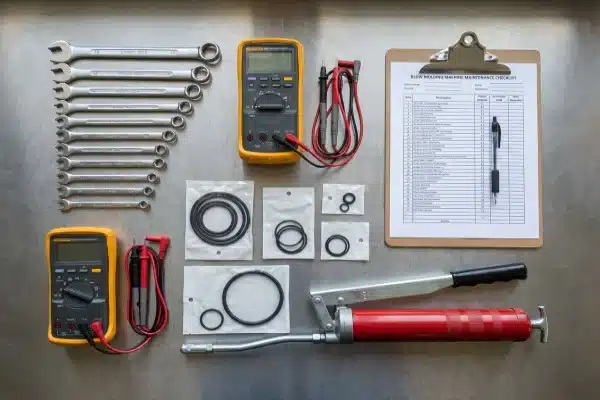

Air leaks, cooling fouling, and lube schedules that save uptime

Fix hisses. Descale heat exchangers quarterly. Grease by hours-run, not by calendar. Record it on the cell board.

Weekly “golden hour” PM checklist to prevent Friday fires

One focused hour, same slot weekly: screens, filters, vents, tie-bar wipe-down, sensor checks, recipe backups. Small work, big dividends.

Troubleshooting fast: symptom → cause → fix

Keep a one-page map at the press.

Flash, short shot, oval necks: immediate moves to stabilize

• Flash: lower blow/start later; tighten pinch-off; check clamp tonnage.
• Short shot: start blow earlier; raise melt temp or parison thickness.
• Oval neck: realign blow pin; center parison; verify drop timing.

Haze, bubbles, gels: materials vs. temperature vs. screens

• Haze: wet air or cold spots; dry air, rebalance cooling.
• Bubbles: moisture or trapped air; dry resin/air, vent mold.
• Gels: contamination or cold melt; purge, raise rear zones, refresh screens.

Warpage and sink: cooling balance vs. wall distribution

Add cooling where it sinks; add parison where it warps. Make small changes, then re-test.

Team ops & SOPs: make “fastEBMz” the default

People lock in the gains machines make.

One-page start-up, shut-down, and emergency procedures

Simple, visual, laminated. Stored at the HMI. Trained quarterly.

Shift handover templates that protect hard-won settings

What changed, why it changed, what to watch next hour. No novels. Just facts.

Training ladder: operator → setter → process tech

Clear skills tree with sign-offs. Tie wage steps to capabilities, not tenure.

KPIs & dashboards: prove your setup is working

Measure what matters, where work happens.

OEE, cycle time, scrap %, and gram-weight control bands

• EGE (Eficiencia General de los Equipos) on the cell board.
• Tiempo de ciclo trend vs. target.
• Desperdicio % por código de razón.
• Bandas de peso con límites SPC.

Reuniones diarias por niveles con tableros rojo/verde y los 3 principales bloqueadores

Diez minutos. Reunión de pie. Verde está bien, rojo tiene responsables de acción. Cerrar el ciclo en el siguiente turno.

Pruebas A/B en cambios de configuración: cómo validar ganancias rápidamente

Cambiar una cosa. Mantener durante una hora. Registrar salida, desperdicio, energía. Conservar cambios que ganen por ≥ 3σ con estabilidad calidad.

Rincón del comprador: características amigables para configuración a buscar

Si compra, elija máquinas que faciliten una gran configuración.

Granularidad de control de parison, memoria de recetas y conexiones rápidas

Más puntos de control, repetibilidad precisa y bibliotecas de recetas robustas reducen el tiempo de ajuste. Las utilidades de conexión rápida convierten horas en minutos.

Ergonomía de cambio de molde, enclavamientos de seguridad y diagnósticos

Cabezales abatibles, placas guiadas, cortinas de luz sin disparos molestos y páginas de diagnóstico que muestran por qué ocurrió una falla.

Puntos de referencia de soporte de proveedores: SLA de respuesta y kits de repuestos

Solicite respuesta remota en 24 horas, presencia en sitio en 72 horas y un kit de repuestos críticos de 90 días. El soporte es una característica de rendimiento.

Conclusión: Consolide las ganancias y escálelas en toda la planta

Estandarice la receta ganadora y audítela semanalmente

Congele lo bueno. Audite contra desviaciones. Proteja lo básico.

Convierta lecciones en listas de verificación, no en leyendas

Si no está escrito, no es repetible. Facilite hacer lo correcto.

Cuándo impulsar actualizaciones de tooling versus actualizaciones de máquinas

Si el control de parison y el enfriamiento están al máximo y la calidad aún lo limita, actualice primero los moldes. Si el tiempo de actividad, la energía y el control son el límite, es hora de especificar una máquina más nueva máquina de moldeo por soplado por extrusión con características amigables para la configuración.

Corra más rápido configurando de manera más inteligente.
