The Ultimate Guide to PET Blow Moulding Machines: Costs, Processes, and a 2026 Buyer’s Guide?

At our factory, we often see clients shocked by hidden setup costs. They buy a machine but forget the air system, leading to budget failures and stalled production lines. This oversight frequently delays project launches.

A complete PET blow moulding line budget must account for more than just the machine. You should estimate costs for the high-pressure air compressor, chiller, and molds. Typically, total capital expenditure ranges from $20,000 for semi-auto setups to over $100,000 for fully automated high-speed production lines.

Let’s break down the financial realities and technical details so you can build a profitable production line.

How much should I budget for a complete PET blow moulding line including auxiliary equipment?

When we draft quotes for international clients, we always emphasize the "High-Pressure Ecosystem." Ignoring the compressor and chiller costs is the most common mistake we encounter during initial planning, often causing budget overruns.

You should apply the "2x Budget Rule" when planning your investment. If the standalone blow moulding machine costs $30,000, allocate another $30,000 for essential auxiliaries like the 30-40 bar air compressor, air dryer, water chiller, and cooling tower required to run the system efficiently.

To understand why the price of the machine is only half the story, you must look at the specific requirements of PET processing. Unlike standard injection molding, blowing a bottle requires massive amounts of high-pressure air (30-40 bar) and rapid cooling.
30-40 bar ¹

The High-Pressure Ecosystem

The most expensive auxiliary component is the air compressor. Standard factory air runs at 7 bar, which is useless for PET bottles. You need a specialized high-pressure compressor. In many of our installation projects, we find that a high-quality 40-bar compressor system cost nearly as much as a semi-automatic blowing machine. If you buy a cheap piston compressor, you risk pressure fluctuations that ruin bottle quality.
air compressor ²

Cooling is Critical

Your cycle time depends entirely on how fast you can cool the plastic. Without a properly sized chiller and cooling tower, your machine will run slowly to prevent the bottles from deforming. This directly impacts your daily output and profitability.
cooling tower ³

Budget Breakdown Example

To give you a realistic idea of where your money goes, here is a breakdown based on a typical mid-range project we might supply:

Hidden Startup Costs

Beyond the hardware, you must budget for "Thermal Waste." When we calibrate machines, we know that PET ovens need 15-30 minutes to "heat soak" and stabilize. The first 50 to 100 bottles produced during every startup are usually scrap. You must factor this material waste into your operating budget, not just your capital budget.

What are the key differences between semi-automatic and fully automatic PET machines for my production goals?

We urge customers to look beyond the price tag and consider labor. In our facility, we test both types, and the operational differences affect your daily profit margins significantly, especially regarding workforce management.

Semi-automatic machines require one operator per unit to manually load preforms, making them labor-intensive with lower output. Fully automatic machines allow one operator to manage multiple lines simultaneously, shifting your costs from ongoing operational labor wages to a higher initial capital investment for automation.

Choosing between semi-automatic and fully automatic is not just about speed; it is about your business model and labor availability.

The Labor Trap

With a semi-automatic machine, the operator is the "robot." They must take heated preforms from the oven and place them into the mold by hand. If the operator is slow, tired, or takes a break, your production stops. In our experience exporting to regions with high labor costs, semi-automatic machines often become more expensive to run over two years than fully automatic ones due to wages.

Theoretical vs. Actual Output

Manufacturers often list "Theoretical Output." However, we advise clients to apply a "Derating Factor."

• Semi-Auto: Derate by 30-40% because humans are inconsistent.
• Fully Auto: Derate by 15-20% for maintenance and minor alarms.
  If a semi-auto machine is rated for 1,000 bottles per hour (BPH), realistically, you will get 600-700 BPH.

The "Neck Finish" Lock-In

A critical technical detail often overlooked is the neck finish. Changing a bottle shape is easy—you just buy a new mold shell. But changing the neck size (e.g., from PCO 1810 to PCO 1881) is a nightmare. On a fully automatic machine, this requires changing the loading mandrels, grippers, and transfer arms. We always advise clients to finalize their preform design before ordering, as retrofitting a machine for a different neck size costs thousands of dollars.

Comparison Matrix

How do I calculate the energy consumption and long-term operating costs of a PET machine?

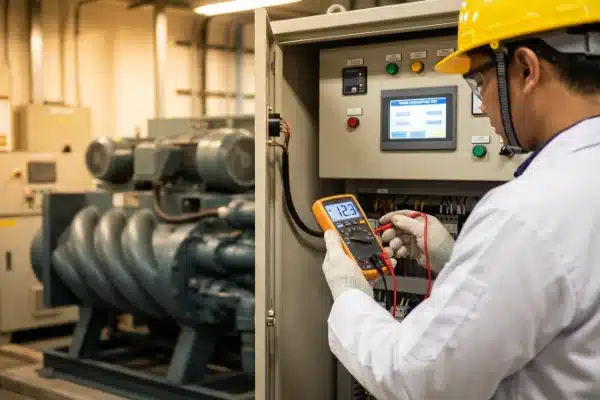

Our engineering team constantly monitors power draw during Factory Acceptance Tests. We notice that the compressor usually consumes more electricity than the actual blowing machine does, surprising many business owners.
water chiller ⁴

To calculate accurate operating costs, use the formula: (Total kW of Machine + Compressor + Chiller) × 0.7 Usage Factor × Local Energy Rate. The high-pressure air compressor is the primary energy consumer, often exceeding the electricity usage of the moulding machine itself.

scrap ⁵

Electricity is often the single largest ongoing expense in a PET blowing factory. Understanding where that power goes is essential for your pricing strategy.
high-pressure ⁶

The 70% Usage Factor

You will see a "Total Installed Power" rating on our machine specification sheets. However, the machine does not pull that amount continuously. Heaters cycle on and off to maintain temperature, and motors vary in load.

• The Formula: We recommend multiplying the total installed power by 0.7 (or 70%) to get a realistic hourly consumption figure.
• Example: If your total line is rated at 100kW, you will likely average 70kW per hour.

Compressor Architecture Impact

The type of compressor you choose drastically changes your energy bill and bottle quality.

• Piston Compressors: Cheaper upfront but energy inefficient. They create a "pressure pulse" that can cause uneven wall thickness in bottles.
• Screw Compressors: More expensive but deliver stable pressure and use less energy per cubic meter of air.
  For long-term operations, we strongly recommend investing in a high-pressure screw compressor setup.

Cycle Time vs. Cavity Count

Energy efficiency is also linked to how you run the machine. A common misconception is that more cavities equal more efficiency. This is not always true. A 4-cavity machine running thick, heavy bottles requires a long cooling time. During that cooling time, the heaters are still on, and the hydraulics are idling.
Sometimes, a 2-cavity machine running a fast cycle is more energy-efficient per bottle than a 4-cavity machine stuck in a long cooling cycle.

Energy Consumption Estimates

What specific features should I look for to ensure stable bottle quality and minimize scrap rates?

We advise every client to prioritize stable heating and drying. Our experience shows that inconsistent preform temperature is the leading cause of rejected bottles and wasted plastic resin.
Dehumidifying Dryer ⁷

To ensure stable quality, prioritize a dehumidifying dryer to remove moisture from hygroscopic PET preforms, preventing brittle bottles. Additionally, look for machines with advanced heating zones and stable high-pressure valves to eliminate wall thickness fluctuations and reduce your overall scrap rate.

enjeksiyon kalıplama ⁸

High scrap rates can destroy your profit margins. If you are throwing away 5% of your production, you are effectively throwing away your net profit.
neck finish ⁹

The Enemy is Moisture

PET is hygroscopic, meaning it absorbs water from the air. If you blow a damp preform, the water turns to steam inside the plastic structure. This causes:

1. Haze/Cloudiness: The bottle looks milky instead of clear.
2. Brittleness: The bottle will shatter easily if dropped.
3. Scrap: These bottles cannot be sold.
   In humid regions like Southeast Asia, a simple hopper loader is not enough. We insist on installing a Dehumidifying Dryer to ensure the preforms are bone dry before they enter the heating oven.

Managing Heat Soak

Stable quality requires a stable machine temperature. As mentioned earlier, the machine needs time to reach thermal equilibrium.

• Our Solution: We recommend machines with closed-loop heating controls. These systems monitor the voltage and ambient temperature, automatically adjusting the heater output to keep the preform temperature constant, even if the factory floor gets colder at night.

Mold Venting and Surface Finish

Poor quality often comes from the mold, not the machine. As air expands the plastic, the air içeri the mold must escape instantly. If the venting is poor, the air gets trapped, creating "burn marks" or preventing the bottle from taking the full shape of the mold.
When ordering molds, ask for sintered vents or precision micro-venting along the parting lines. This reduces the need for frequent cleaning and ensures crisp details on your bottles.

Quality Checklist for Buyers

• Heating Lamps: Are they standard IR or advanced focused lamps?
• Valves: Does the machine use reputable brands (like Festo or SMC) for high-pressure switching?
• PLC: Is the control system open for adjustments, or locked down?

Sonuç

Choosing the right PET machine requires balancing budget, labor, and energy. We hope this guide helps you plan a profitable line. Contact us for a specific configuration proposal.
