6 EBM machine mistakes and how to fix them

the customer check and accept the blow molding machine of lekamachine

Fix 6 common EBM machine mistakes fast—utilities, melt profile, parison, sealing, cooling, and timing. Grab the step-by-step checks and cut cycle time today.

EBM machine — stuck stabilizing cycles or hitting target output?

Most big problems start as small oversights.

Use this path: see the symptom, find the cause, apply the fix.

I’ll keep it practical and short.

Mistake 1: Skipping utility checks before startup

Symptoms

• Slow cycles, dull surface
• Random jams right after power-up

Root causes

• Low compressed air pressure to valves
• Warm cooling water
• Voltage drop at the machine cabinet

Fix it now

• Verify air PSI and flow (LPM) at the machine, not just the header
• Log water ΔT and inlet temperature
• Check voltage under load during heat-up

Pro move

• Post a 2-minute utilities checklist at the HMI for shift handovers

Internal link spot: link to your Preventive maintenance checklist here.

Mistake 2: Running the wrong melt temperature profile

Symptoms

• Gels, die lines
• Parison swell or sag
• Cloudy parts

Root causes

• Zone imbalance
• Aggressive screw RPM
• Aged thermocouples

Fix it now

• Flatten zones within ±5–10°C end-to-end
• Sync RPM to backpressure (don’t chase output with speed alone)
• Recalibrate or replace suspect sensors

Pro move

• Save golden recipes by resin grade and by season (summer/winter)

Mistake 3: Poor die-head centering and parison control

Symptoms

• Uneven walls, oval necks
• Weak handles
• One-sided flash

Root causes

• Off-center mandrel
• Out-of-date parison program
• Worn guides/bushings

Fix it now

• Center with feeler gauges and weight rings

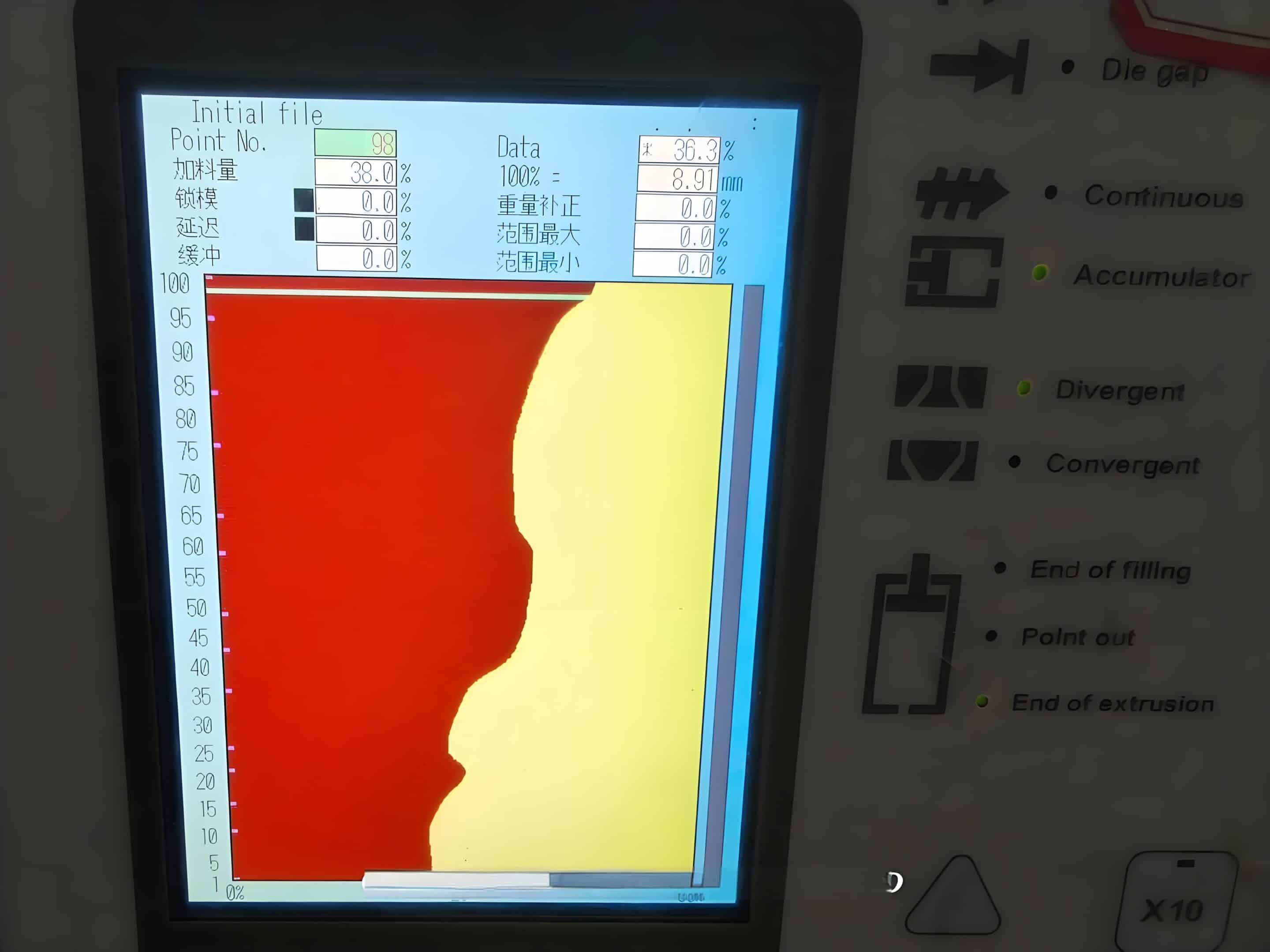

• Re-baseline the parison curve (start flat; trim where wall is heavy)
• Tighten or replace guides

Pro move

• Run a weekly 10-drop wall-weight audit to keep curves honest

Internal link spot: link to your Parison programming guide here.

Mistake 4: Mold not sealing or venting correctly

Symptoms

• Leaks, excessive flash
• Burn marks, incomplete corners

Root causes

• Clamp misalignment
• Clogged vents
• Tired pinch-off edges

Fix it now

• Shim and square the clamp
• Clean/ream the vents
• Reface pinch-off; verify clamp tonnage

Pro move

• Use a blue-dye transfer test for instant seal diagnostics

Mistake 5: Cooling that fights your cycle time

Symptoms

• Warpage
• Sinks after 24 hours
• Long de-mold waits

Root causes

• Series water circuits choking flow
• Low LPM
• Chiller setpoint too high

Fix it now

• Swap to parallel loops
• Raise and balance flow
• Drop chiller 1–2°C and re-check ΔT

Pro move

• Label each circuit with in/out ΔT and track drift daily

Internal link spot: link to your Cooling water best practices here.

Mistake 6: Blow and exhaust timing out of sync

Symptoms

• Pear-shaped bottles
• Trapped air
• Scuffs at eject

Root causes

• Late pre-blow
• Long main blow
• Slow exhaust

Fix it now

• Advance pre-blow 50–100 ms
• Trim main blow to the minimum that holds shape
• Speed up exhaust for clean release

Pro move

• Tune with an oscilloscope/PLC trace—data over feel

Rapid diagnostics: match the symptom to the quickest check

Start here (60 seconds)

• Flash? Check clamp alignment and pinch-off wear
• Haze? Verify melt profile and moisture
• Warp? Balance cooling and check ΔT
• Short shot? Air PSI, venting, head pressure

Measure first

• Melt pressure
• Air PSI
• Water ΔT
• Gram weight

Material matters: resin, moisture, and regrind rules

HDPE vs PP (plain talk)

• HDPE: forgiving; great for jerrycans and handles
• PP: stiffer at heat; watch shrink/warp

Regrind

• Start at ≤15–20%
• Monitor critical-wall Cpk and top-load

Moisture & handling

• Keep bags sealed; avoid resin condensation
• Dry PP blends per spec to prevent bubbles/haze

Changeovers without chaos

SMED basics (stage, swap, stabilize)

• Stage: tools, hoses, quick-connects ready
• Swap: hot-mold carts; preset torque tools
• Stabilize: judge the first article by data, not gut feel

Fast color change

• Purge at a high-shear window, then return to standard profile

First-article: log these five

• Cycle time
• Gram weight
• Wall map
• Top-load
• Leak rate

Internal link spot: link to your First-article inspection template here.

Quality at speed

• Lightweighting without paneling: quick crush + drop routines
• Neck finish in 2 minutes: plug gauge + visual burr check
• Inline vision: auto-catch flash, short shot, black specks

Maintenance that prevents the same mistake twice

• Weekly golden hour PM: screens, filters, vents, leaks
• Calibration cadence: thermocouples, flow meters, pressure transducers
• Smart spares: heaters, TCs, seals, pinch-off inserts, valve kits

KPIs and proof of fix

• Track OEE, cycle time, scrap %, gram-weight band
• A/B changes on one press/shift before rollout
• Revert if scrap rises or cycle worsens

Safety first

• Lockout/Tagout on heat, air, and hydraulics
• Respect hot surfaces and moving clamps
• “Faster” is never worth a hand injury

Team habits that make fixes stick

• One-page SOPs posted at the machine
• Shift handover notes with last-good recipe and issues
• Training ladder: operator → setter → process tech

A quick story (the two-minute win)

Last winter a line always started sluggish.

People blamed the resin.

I clipped on a clamp meter and pressure gauge and found low startup air PSI and voltage sag during heat-up.

Bumped the regulator and tightened lugs—two minutes.

Cycle dropped 0.7 s and surface gloss returned.

Most “mysteries” are utilities.

FAQs

Why do my bottles warp overnight but look fine at the press?

Usually uneven cooling or series circuits choking flow. Switch to parallel, raise LPM, and confirm consistent ΔT across circuits.

What’s a safe starting point for parison programming after a mold change?

Start flat, run 10 drops, map wall weights, then adjust in small steps (±3–5%) only where heavy.

How much regrind can I use without hurting consistency?

Begin at ≤20%. Watch critical-wall Cpk and top-load before pushing higher.

Vision system flags random black specks—what’s the source?

Check screen packs, hopper hygiene, and dryer filters. Replace screens on a fixed cadence, not “when it looks dirty.”

Will lowering melt temperature always reduce haze?

Not always. Too cold raises viscosity, causing die lines and poor fusion. Aim for a flat, stable profile first.

Standardize these actions, review weekly, and your EBM machine will pay you back every shift.

EBM machine
